3.14 – Settings and Input wiring for single ended stereo output from voltage output DAC, stereo, balanced output, 2..3 VRMS full scale output voltage, 2.5V reference voltage

Known examples of DAC’s requiring these settings are listed under 3.13.

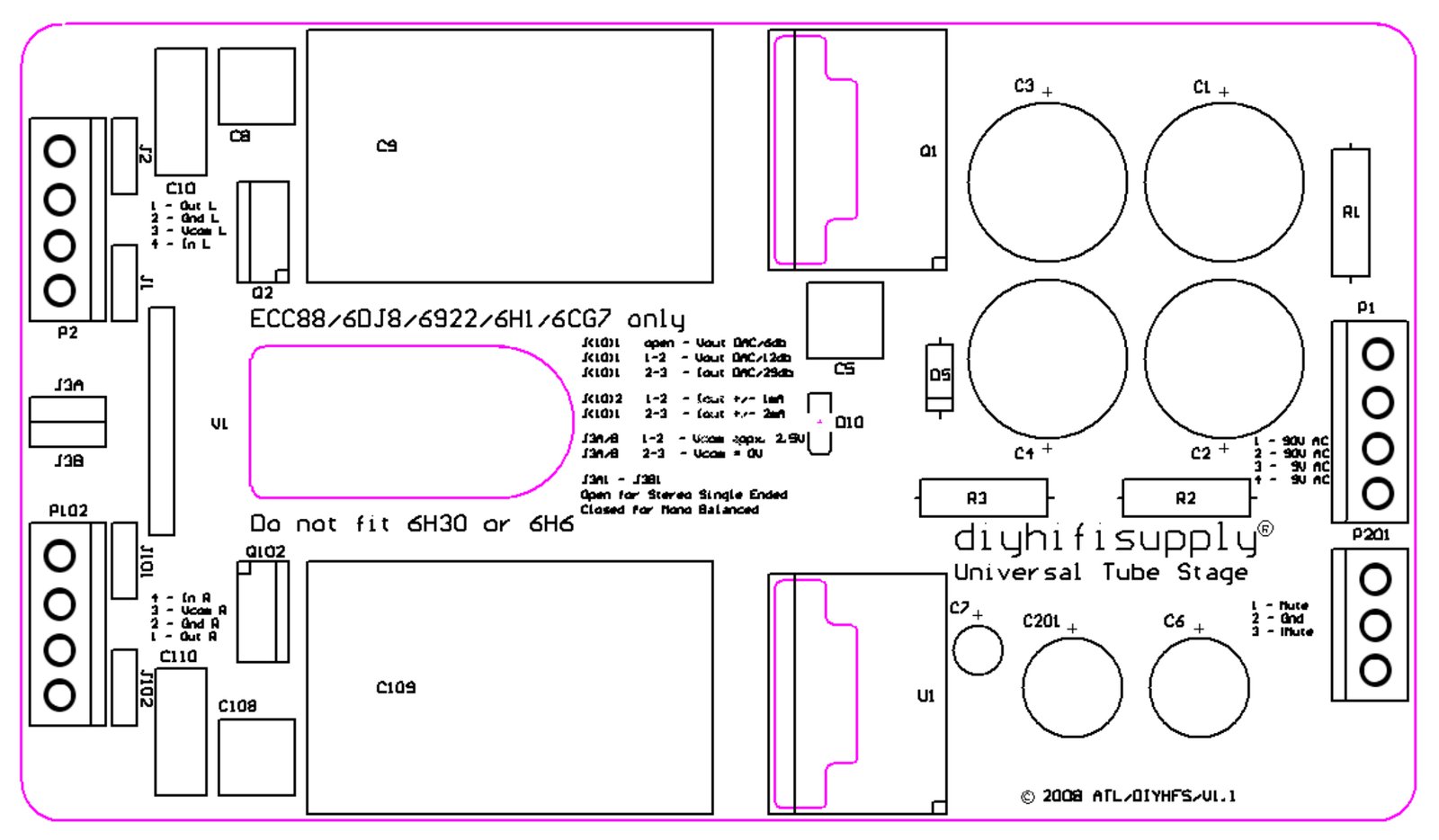

This type of DAC requires the following jumper settings:

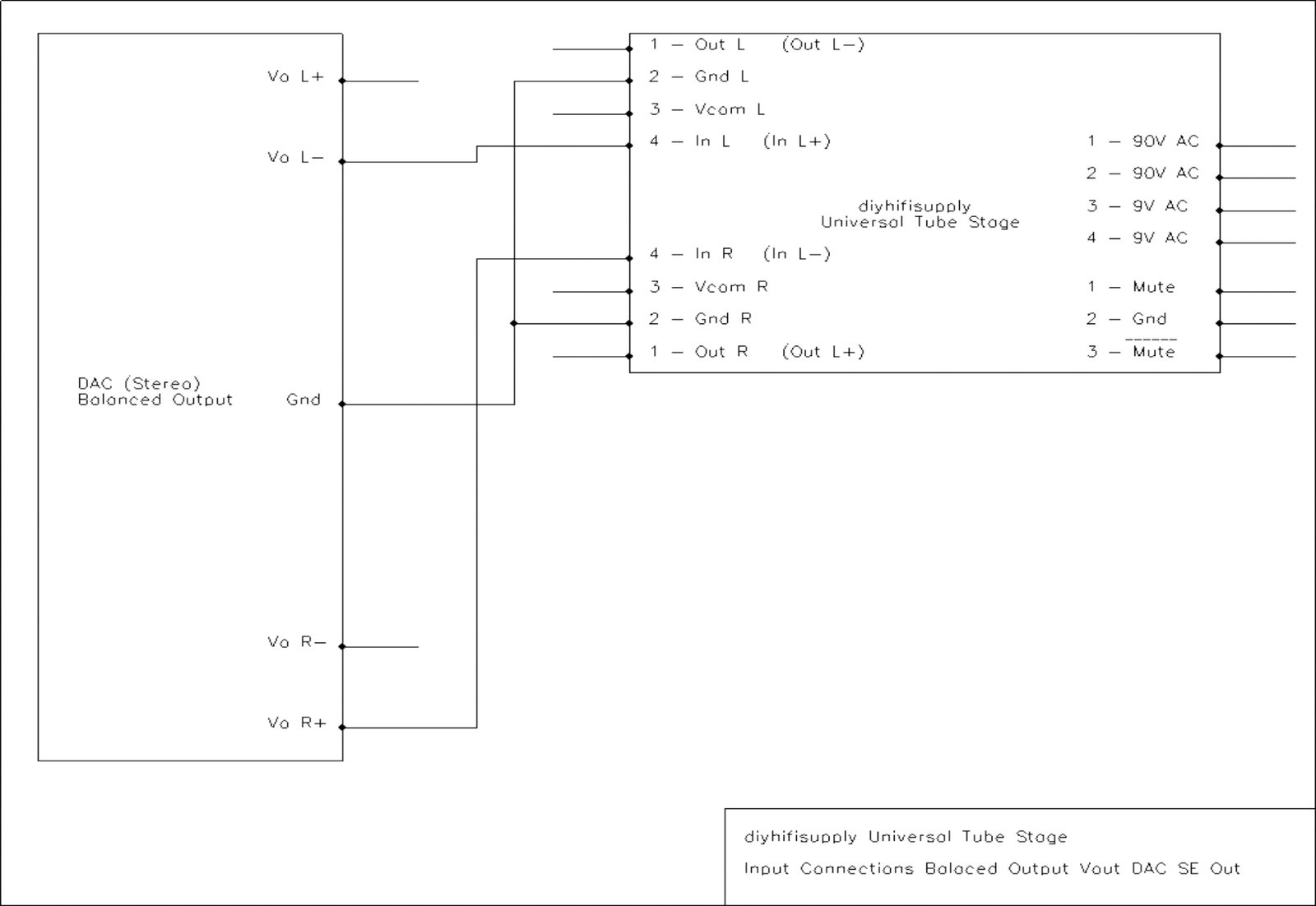

The input connections should follow the Scheme shown underneath:





All Ground connections must be made to the DAC’s Analogue Ground Pin.
