3.11 – Settings and Input wiring for voltage output DAC, stereo, single ended, 1…1.5 VRMS full scale output voltage, 0V reference voltage

A known example of a DAC requiring these settings is the Crystal/Cirrus Logic CS4328.

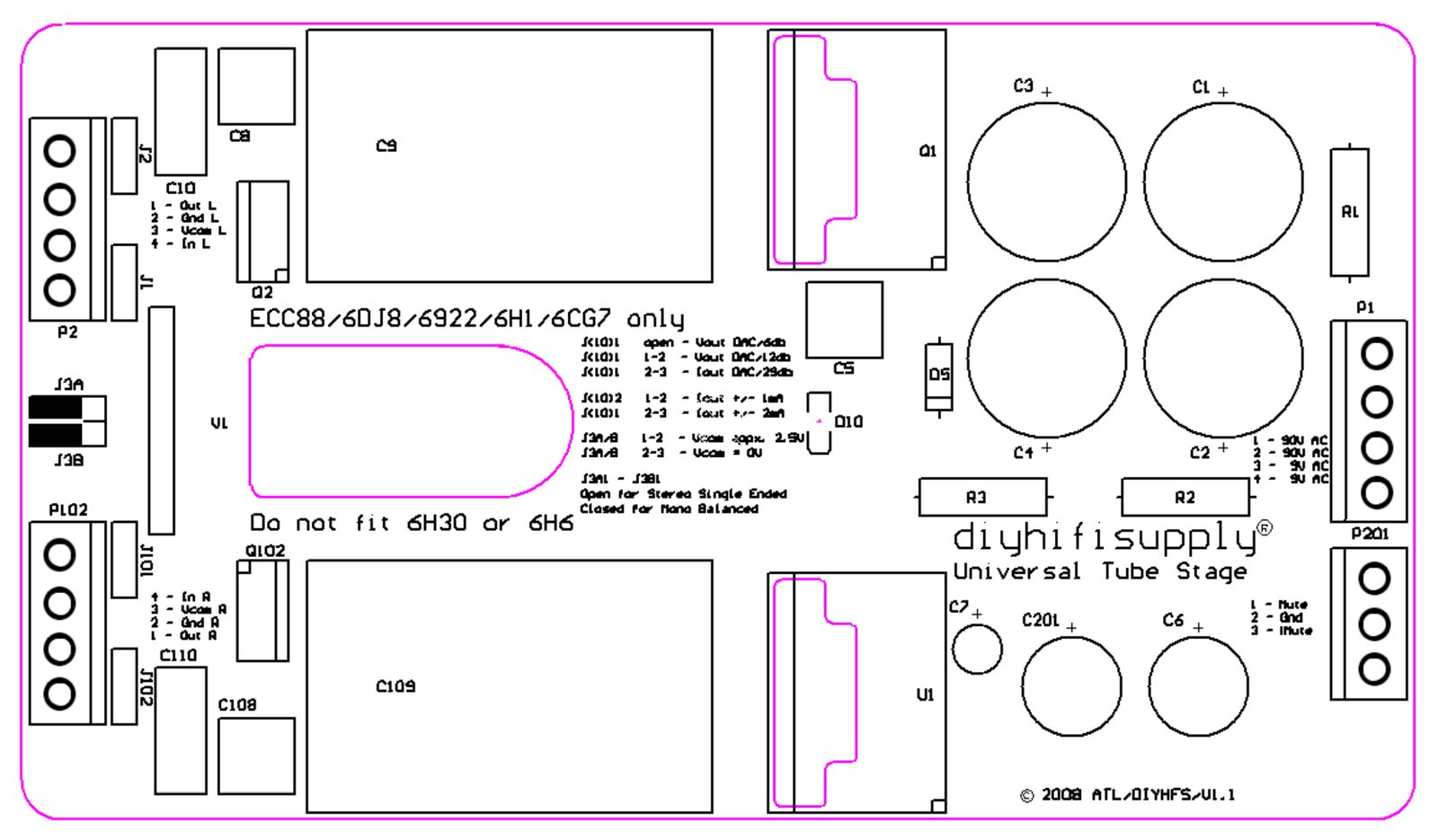

This type of DAC requires the following jumper settings:

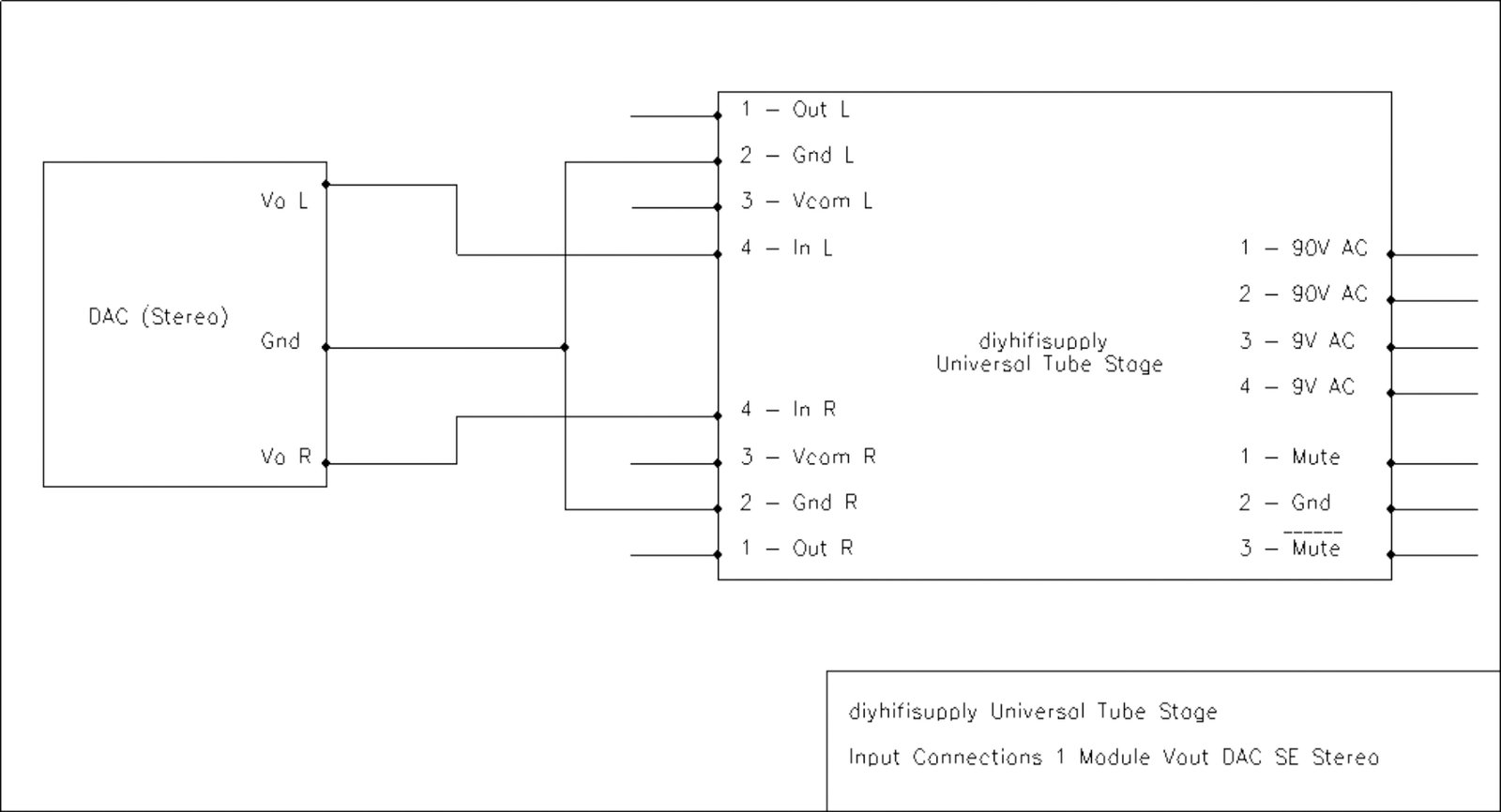

The input connections should follow the Scheme shown underneath:





All Ground connections must be made to the DAC’s Analogue Ground Pin.



3.12 – Settings and Input wiring for voltage output DAC, stereo, single ended, 1…1.5 VRMS full scale output voltage, 2.5V reference voltage



Known examples of DAC’s requiring these settings are



Analog Devices AD1866, AD1868, AD1857 / 58 / 59, AD1958



Asahi Kasei (AKM) AK4384, AK4385, AK4386, AK4387, AK4388, AK4344, AK4345, AK4364



Burr Brown PCM1716, PCM1723, PCM1727, PCM1728, PCM1732, PCM1740, PCM1741, PCM1742, PCM1744, PCM1748, PCM1753 / 54 / 55, PCM1770 / 71 / 72 / 73 / 74, PCM1780 / 81 / 82, PCM2704 / 05 / 06 / 07, DSD1702



Crystal/Cirrus Logic CS4327, CS4334 / 35 / 36 / 37 / 38 / 39 / 40 / 41 / 44 / 45 / 46 / 48 / 49 /



Nippon Precision Circuits (NPC) SM5882, SM5883, SM5885



Pioneer PE8001



Philips TDA1305T, TDA1306T / 86T, TDA1311T / 12T / 13T, TDA1549, UDA1320 / 21 / 22 / 24



Sanyo LC78835



Panasonic MN662710 (Technics „Mash“ CD-Player on one chip IC)



Wolfson Micro WM8716



This type of DAC requires the following jumper settings:

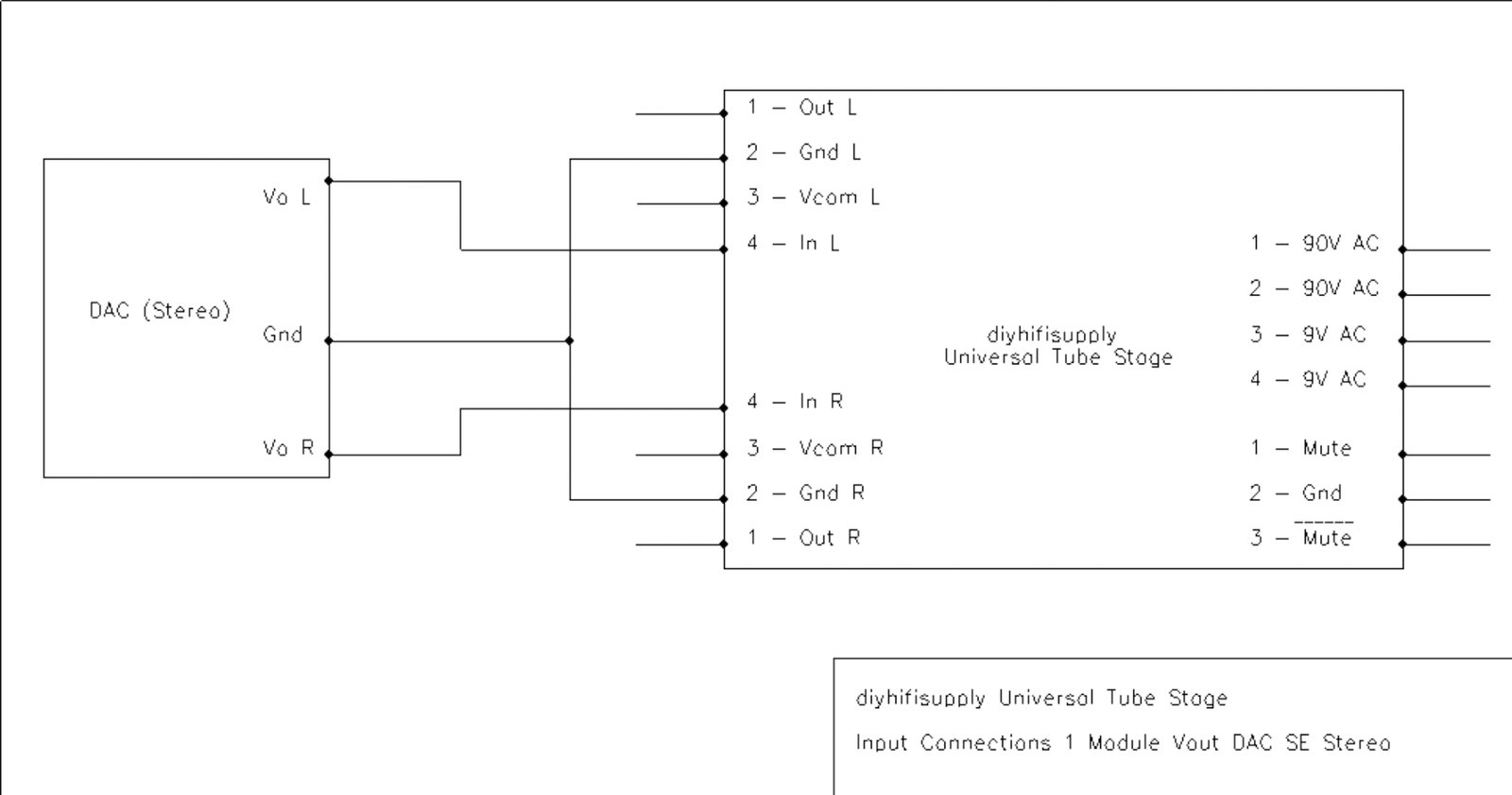

The input connections should follow the Scheme shown underneath:





All Ground connections must be made to the DAC’s Analogue Ground Pin.
