3.05 – Settings and Input wiring for current output DAC, balanced mono DAC’s, balanced output, 1mA full scale current, 0V reference voltage

Players and DA Convertors where four DAC’s are operated in balanced mode require these settings and wiring. The types of DAC Chips applicable are Burr Brown PCM56, PCM1702 & PCM1704 as well as Analog Devices AD1856, AD1861 & AD1862.

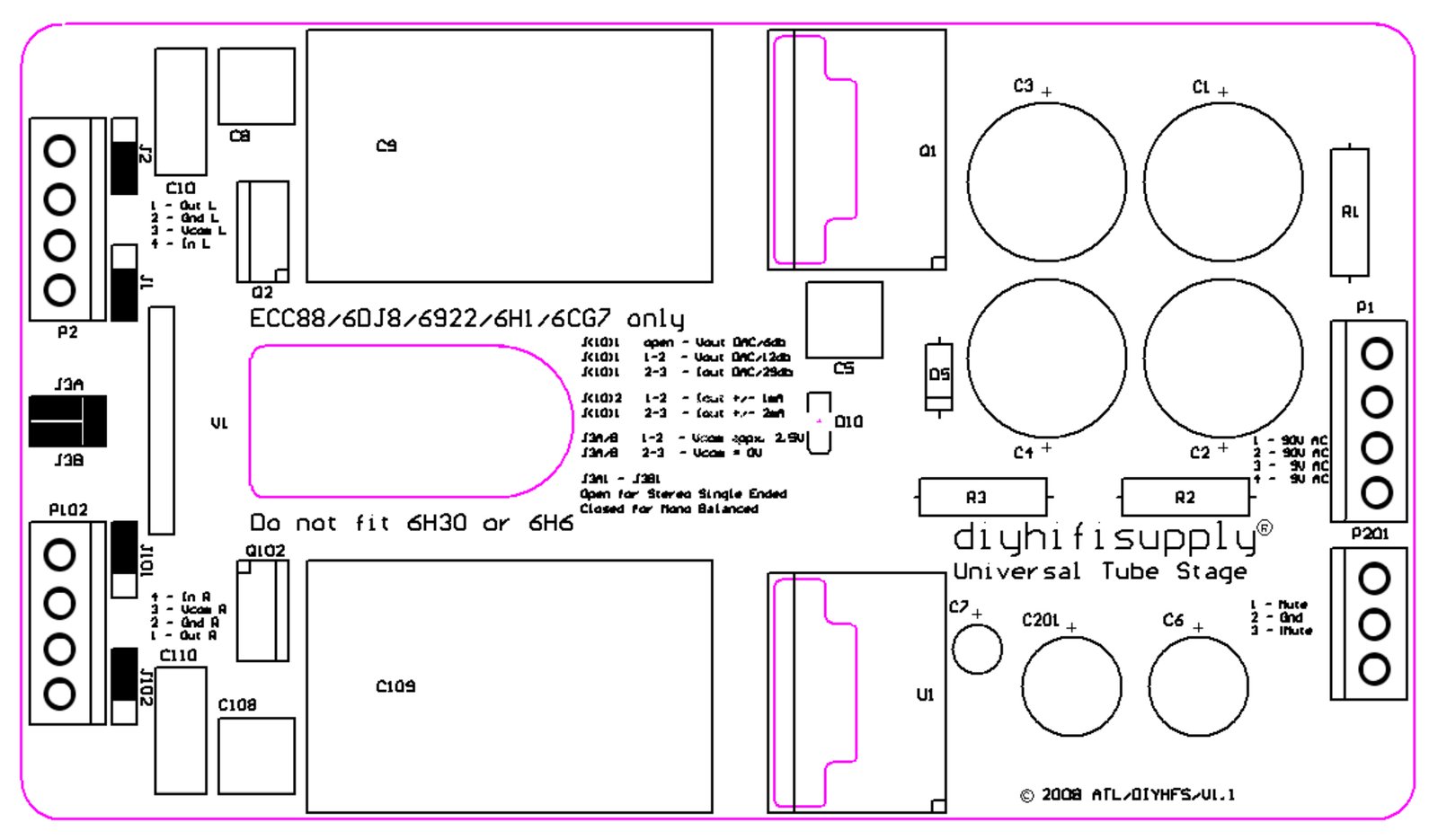

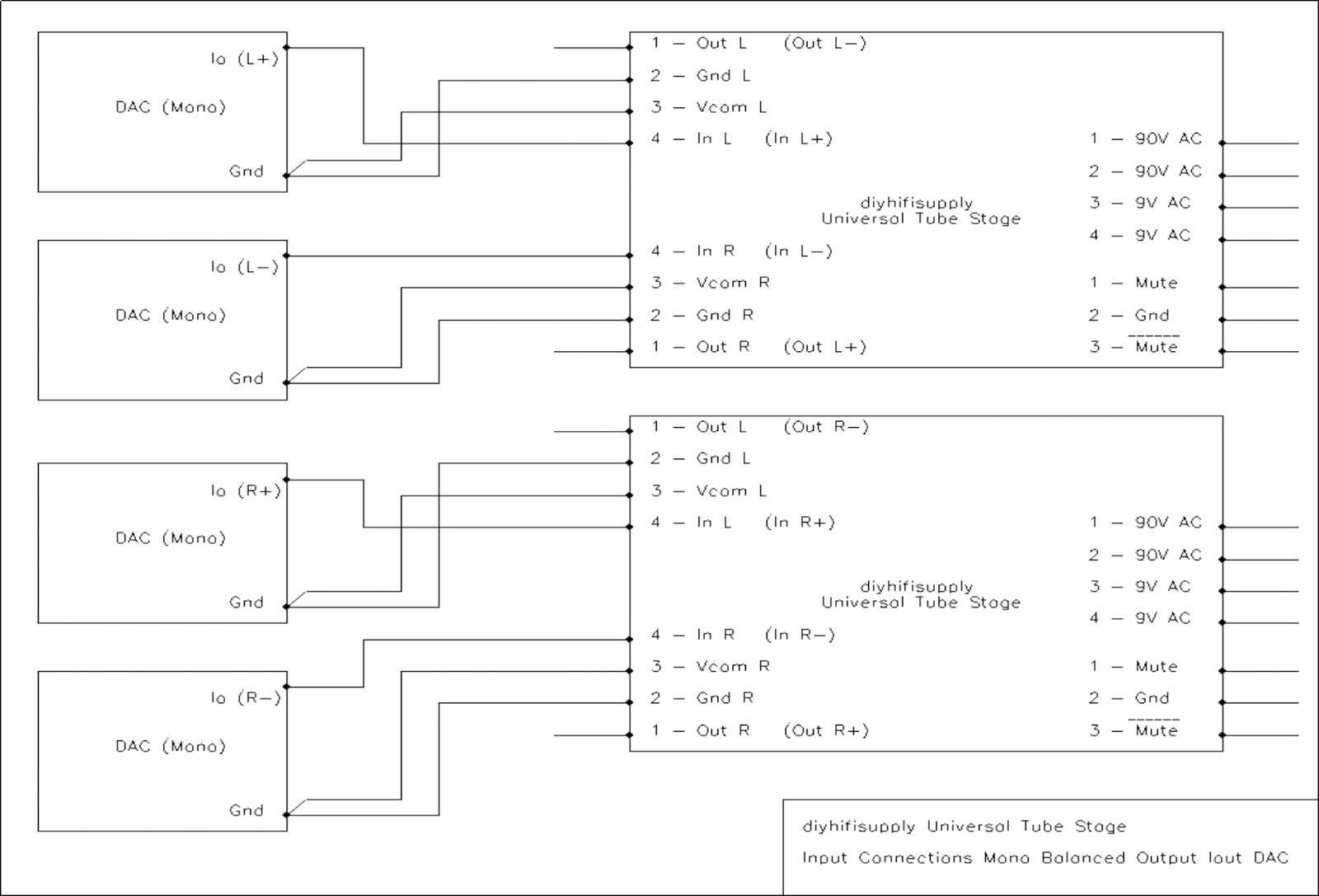

The input connections should follow the Scheme shown underneath:





All Ground connections and the Vcom connections must be made to the respective channels DAC’s Analogue Ground Pins.



3.06 – Settings and Input wiring for current output DAC, balanced mono DAC’s, balanced output, 2mA full scale current, 0V reference voltage



Players and DA Convertors where four DAC’s are operated in balanced mode require these
settings and wiring. The types of DAC Chips applicable are Burr Brown PCM63.

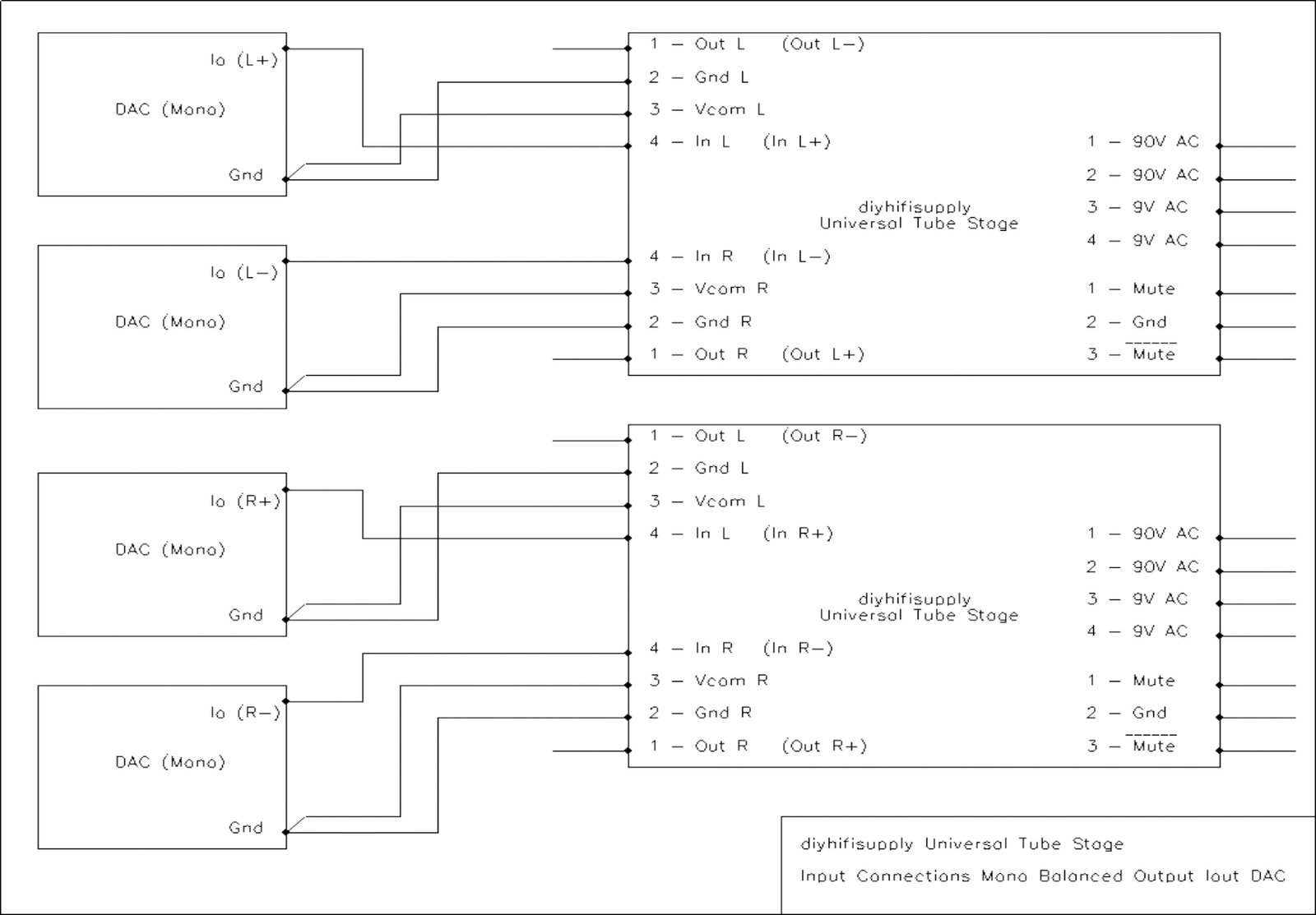

The input connections should follow the Scheme shown underneath:





All Ground connections and the Vcom connections must be made to the respective channels DAC’s Analogue Ground Pins.
